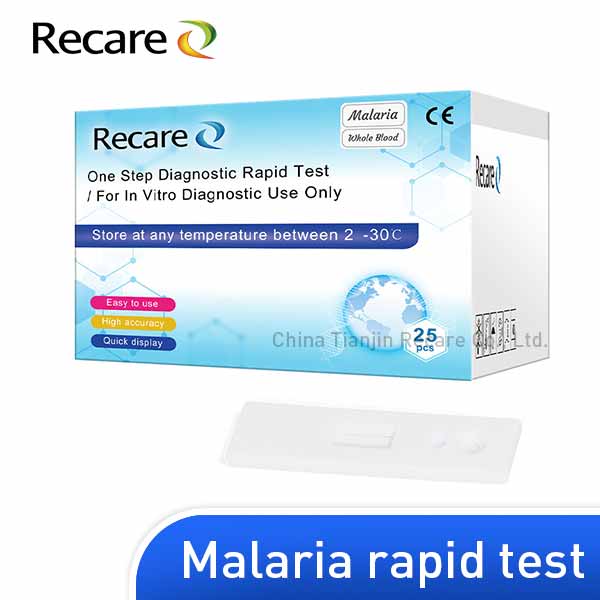

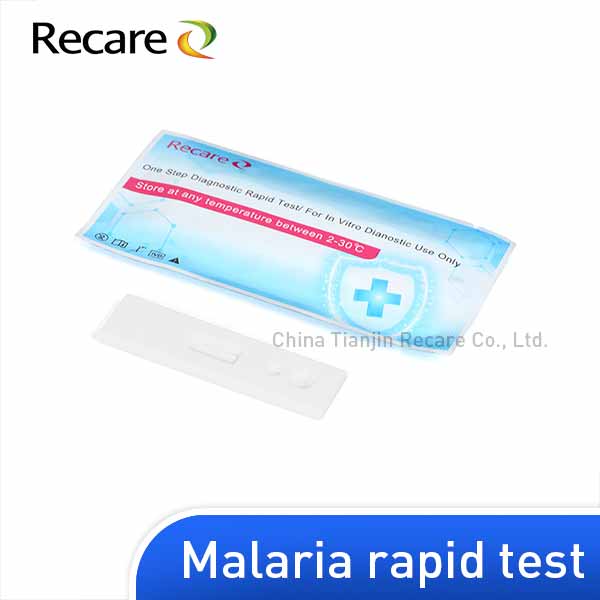

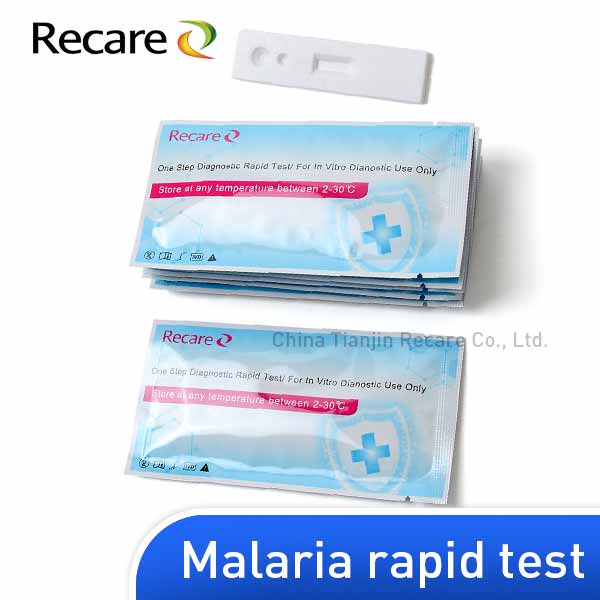

one step diagnostic accurate malaria rapid test kit
Our mission is to produce and sell the highest quality rapid tests for humans.
Malaria Pf/Pv Antigen Rapid Test is a rapid, qualitative test for the detection of Plasmodium falciparum and/or Plasmodium vivax, (Plasmodium orale and Plasmodium malariae) antigen in whole blood. The test uses antibodies that are specific for the histidine-rich protein 2 antigen (HRP-2) of Malaria P.f. and Plasmodium aldolase for the detection of all malaria Plasmodium species.
PRODUCT DESCRIPTION
one step diagnostic accurate malaria rapid test kit
|
Function |
For the qualitative detection of Malaria Pf/Pv antigen in whole blood |
|
Formats |
cassette, strip |
|
Specifications |
cassette(3mm, 4mm) or according to the customers' requirements |
|
Specimens |
whole blood |
|
Sensitivity |
10mIU/ml, 25mIU/ml |
|
Specificity |
99% |
|
Reaction Time |
15 minutes |
|
Shelf Life |
24 months at room temperature 4- 30 degrees |
|
Packing Details |
Cassette 40pcs/bag, 50bags/carton. 500,000pcs/20'ft container 40pcs/box, 50boxes/carton, 550,000pcs/20’ft container 1pcs/box, 500boxes/carton, 120,000pcs/20’ft container 100pcs/bag, 100bags/carton .1,300,000pcs/20'ft container 100pcs/box, 50boxes/carton, 1,700,000pcs/20’ft container 50pcs/box, 100boxes/carton, 1,600,000pcs/20’ft container 1pcs/box, 500boxes/carton, 120,000pcs/20’ft container |
|
Others |
The kits can be made according to the customers' artwork or design |
ASSAY PROCEDURE
1. Allow all reagents and samples to achieve room temperature.
2. Remove the cassette from the foil pouch and place it on a clean flat dry surface.

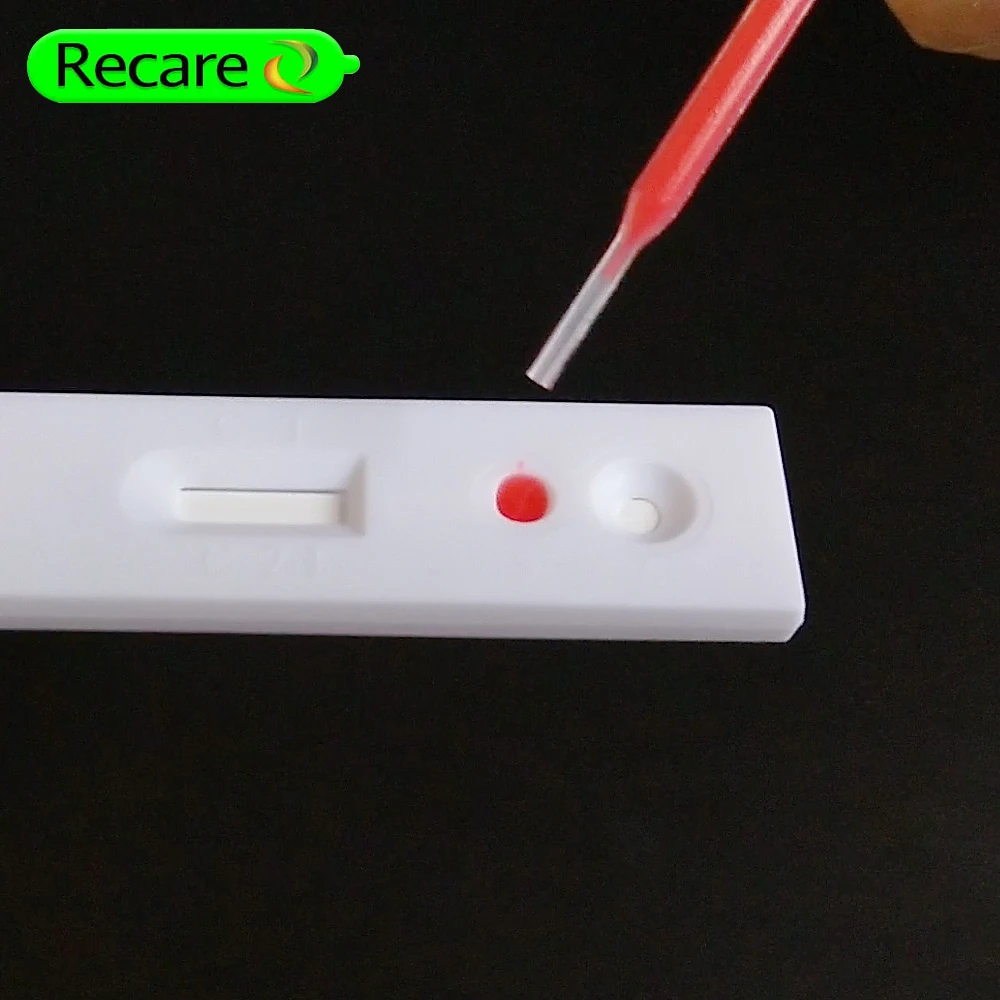

3. Add 5 ul of whole blood to the sample well. Now add 3-4 drops of buffer (~100 ul). Start the timer.
4. Interpret the test result in 20 minutes. Discard the cassette after 20 min. to avoid incorrect results.

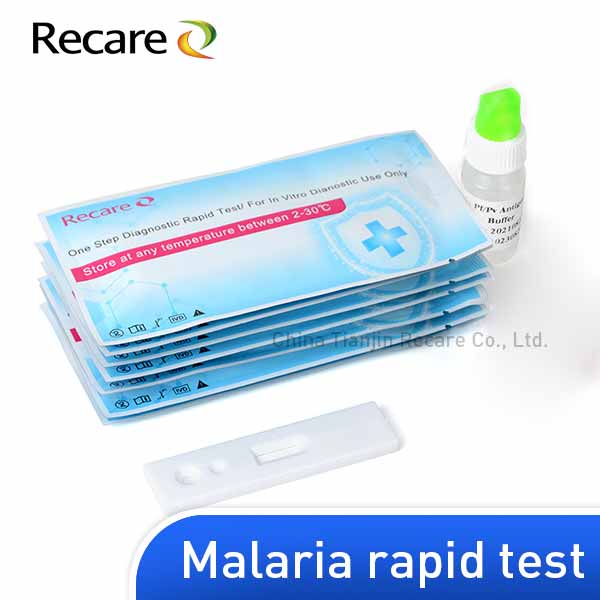

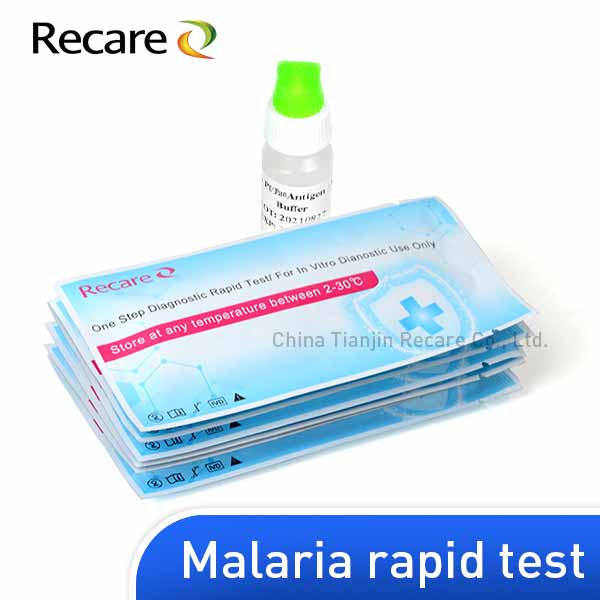

REAGENTS AND MATERIALS PROVIDED
1One pouch sealed with desiccant
2Blood diluent buffer in a dropper bottle
3One package insert
MATERIALS REQUIRED BUT NOT PROVIDED
1. Clock or Timer
2. Lancing device for whole blood test
SAMPLE COLLECTION AND PREPARATION
Whole Blood:
Drops of whole blood can be obtained either from finger or vein puncture. Whole blood should be stored not more than 3 days in refrigerator at 2-4 degrees if not used immediately.
PRODUCT INSTRUCTION DISPLAY
one step diagnostic accurate malaria rapid test kit

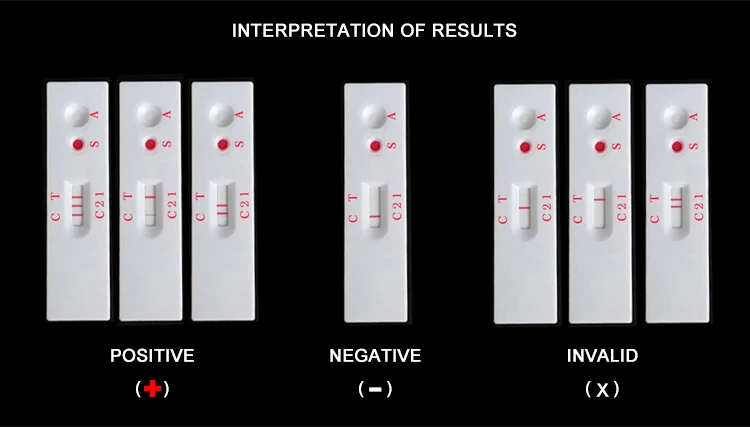

Negative results:
Only the control red band will appear.
Positive results:
Pf positive: Two red bands will appear. One in control zone and other in Pf (T2) zone.
Pv positive: Two red bands will appear. One in control zone and other in Pv (T1) zone.
Mixed positive: Three red bands will show up in Control, Pf (T2), & Pv (T1) zone.
Invalid results:
If no band shows up in the control zone, the test result is invalid even though red bands show up in Pf (T2) & or Pv (T1) zones. If no red bands show up in the test zone, the test is also invalid.
